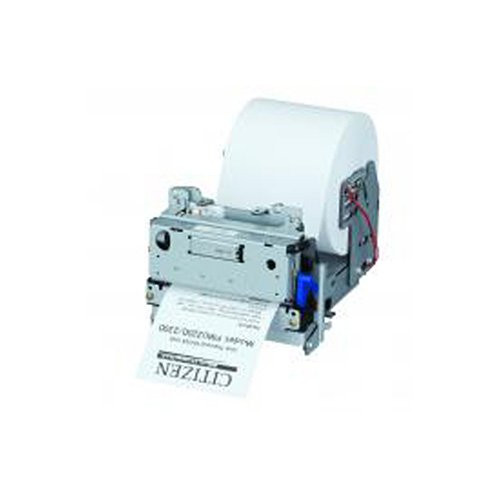

Citizen PMU-2300II, RS232, 8 dots/mm (203 dpi) (PMU2300IIRSUP8R2)

The PMU2300 shares the same proven features as our smaller PMU2200 thermal printing mechanism, while offering a maximum print width of 3 inches. Developed for use in printing kiosks, for the fast and reliable production of receipts, the PMU2300 is compact, offers the flexibility for paper rolls to be fitted from either side or above, and prints at speeds of up to 150mm/sec. A fast removal printhead makes it easy and fast to clear jams, while a range of integrated sensors continuously monitor operating status.

• Integral full or partial cutter
• Standard interfaces
• Option of 0.15mm paper thickness

Key benefits

• Prompt print out of receipts - up to 150mm per second
• Easy Paper loading
• Wide variety of paper-holding styles and options
• Paper thickness up to 0.150mm
• High endurance - up to 1 million cuts, headlife up to 100km
• Small footprint and compact design
• Flexible cutting - full or partial
• Removable head design for easy cleaning and paper-jam recovery
• Operates within a wide temperature range (-20°C to 60°C)

Connectivity

• Built-in interface
• Serial
• Parallel
• USB

Operating system

• Windows XP, Vista, 7 and 8
• ESC/POS® emulation

Typical application

• Kiosk
• Retail
• Journal
• Ticketing
