Citizen PMU-2200II, USB, 8 dots/mm (203 dpi) (PMU2200IIUBUP8R2)

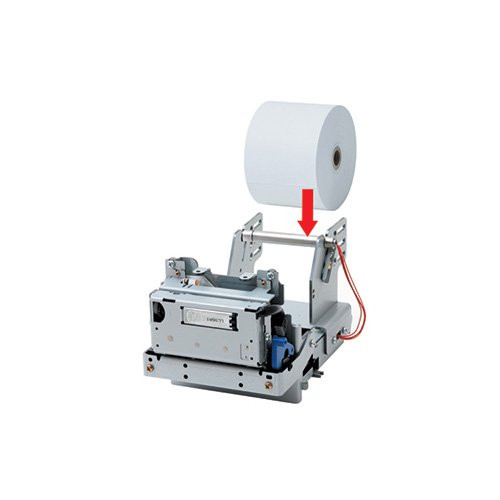

Our PMU2200II line thermal printing mechanism has been developed for use in printing kiosks, for the fast and reliable production of receipts. Compact, with a small footprint, the 2 inch wide PMU2200II offers the flexibility for paper rolls to be fitted from either side or above. Print speeds are up to 150mm/sec, with a fast removal printhead making it easy and fast to clear jams, while a range of integrated sensors continuously monitor operating status.

• Integral full or partial cutter
• Standard interfaces
• Option of 0.15mm paper thickness

Key benefits

• Prompt print out of receipts - up to 150mm per second
• Easy Paper loading
• Wide variety of paper-holding styles and options
• Paper thickness up to 0.150mm
• High endurance - up to 1 million cuts, headlife up to 100km
• Small footprint and compact design
• Flexible cutting - full or partial
• Removable head design for easy cleaning and paper-jam recovery
• Operates within a wide temperature range (-20°C to 60°C)

Connectivity

• Built-in interface
• Serial
• Parallel
• USB

Operating system

• Windows XP, Vista, 7 and 8
• ESC/POS® emulation

Typical application

• Kiosk
• Retail
• Journal
• Ticketing
